Butterfly Valves

About Butterfly Valves

Butterfly Valves

We are armed with adequate wherewithal and know-how for manufacturing, supplying and exporting premium quality Butterfly Valves. Designed by us, this valve works for isolating and regulating flow of free flowing substance. It is developed using raw material, which is sourced from trusted vendors to ensure  these valves offer optimum performance. We cater not only to the needs and demands of our Indian clients but also the International ones. We securely transit Butterfly Valves to our clients in foolproof packing.

Application Area:

•     Water Treatment Plant
•     Waste Effluent Treatment Plant
•     Gas Plant
•     Cooling Water Circulation
•     Heating & Air Conditioning
•     Breweries
•     Drilling Rigs
•     Pneumatic Conveyors
•     Compressed Air
•     Paper Industry
•     Sugar Industry
•     Chemical Industry

Further Details:

Our Butterfly Valve is designed with broad application, manufacturing and design expertise. Optimum performance Slender-Seal and Concentric designed valve is solid, handling free shutoff along with perpetual gas-proof seal with an essentially shaped or expendable elastomer body lining. It has having two nos. rim positioning gaps for sizes approximately 12 and from extent 14 or more 04 nos. for simple arrangement of valve amid installation. Flange of our butterfly valve positioning gap affirm in accordance with ANSI B 16.5 Class 150; Class 125; BS 10 Table D, F, E; PN 16; PN 6 and PN 10 or other universal standard. Our product is additionally accessible with complete-Lugs sort body with elevated flanged and faces end connection.

This sort of valves surpass other traditional valves, for example, globe valves and gate valves in every aspect, particularly in respect to least number of parts, economical working, handling costs, light weight and no flange gaskets are demanded.

Our Thin Seal configuration Butterfly Valve body seat instrument have a low torque, tight close off with nil spillage, smaller actuator determination, and long life hassle free operation. The center disc and slim seal outline valves are broadly accessible with various blend of body, disc and seat material to fulfill the requirement of most industrial use.

Some Of The Prominent Features:

• Slim Seal And Concentric Design
• Higher Sealing Capacity
• Delicate Seat Design
• Bring Down Torque With Any Liquid
• Everlastingly Tight Closure
• Bi-Way Valve
• Ideal Working Under Vacuum Condition
• Reasonable For Off-On And In Addition Throttling Service
• Materials For All Media
• Brief Face To Face Measurement
• Wafer Outline Body
• Prolonged Service Life
• Easy And Smooth Working
• Handling Free Version
• Simple To Install And Less Weight

Special Features:

• Bi-Directional Valve
• Optimum Operation Under Vacuum Condition
• Lower Torque With Any Fluid
• Less Weight, Easy To Install
• Greater Sealing Capacity
• Permanently Tight Closure
• Wafer Design Body
• Off Set Disk Outline Butterfly Valve for greater temperature and pressure service
• Replaceable and shaped Seat alternative

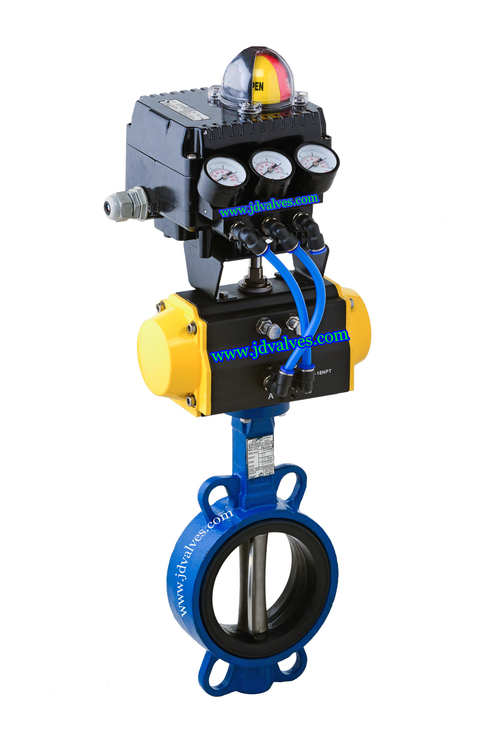

• Pneumatic rotary actuator and gear operated
• P.T.F.E. (FEP/PFA) Lined and Flanged End Valve
• Damper sort Butterfly Valve for higher Temperature Air Service
• Made to order Valve

Material of Construction:

Cast Iron:                     IS 210 Gr FG 200
Cast Carbon Steel:       ASTM A 216 Gr WCB
Cast Stainless Steel:    ASTM A 351 Gr CF 8/CF 8M
Forged Carbon Steel:    ASTM A 105
Forged Stainless Steel: ASTM A 182 Gr F304 / F316
Seat & Seals:               PTFE, Reinforced PTFE
Design Type:                Single Piece/ Two Piece/Three Piece
End Connection:           Wafer Type To suit to ANSI B 16.5 (150#)

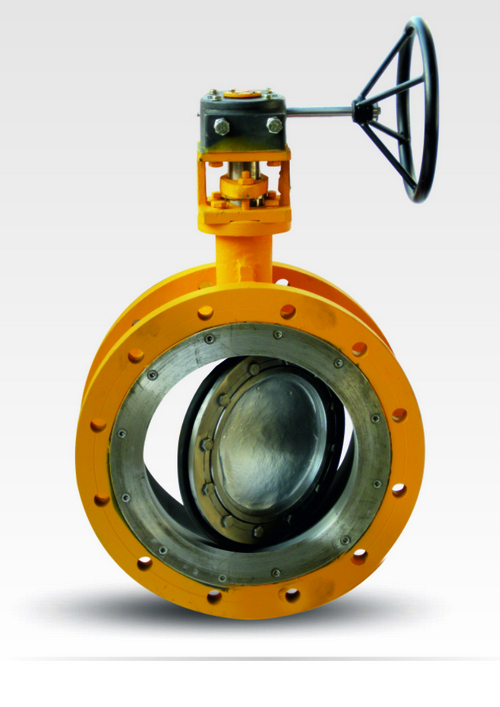

Double Flanged:           AS PER ANSI B 16.5 (150#)
Pressure Rating:          ASA 125#, 150#
Engineering Option:      Gear Operated, Electrical Actuated & Pneumatic Actuated
Size Range:                 50 mm to 300 mm

Design & Testing International Standard:

Valve Design:       BS 5155 / API 609
Pressure Testing: BS 6755-I / API 598
Face To Face:     ANSI B 16.10
Flange Drilling:     ANSI B 16.5 / BS 10 Table / DIN / IS 6392
Pressure Rating:  PN 10 / PN 16
Size Range:        40NB to 600NB

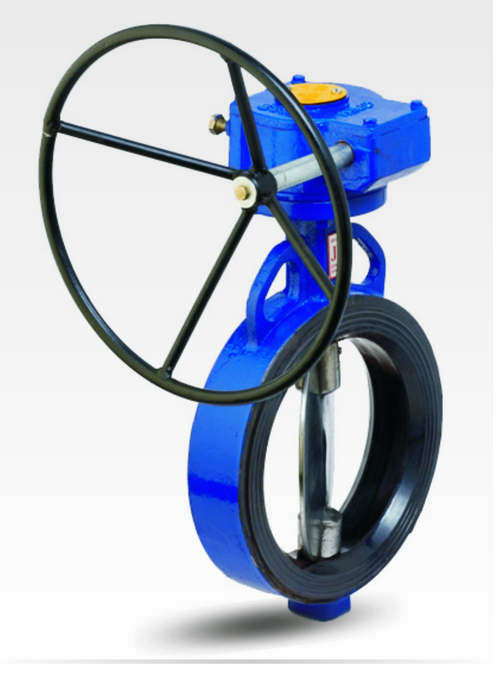

Operation:           Up to 250NB Flow-Control Lever Operated and above Gear Operated. On special request Gear Operation also available from 80NB size.

Precision Design and Durability

Equipped with a cast iron or stainless steel disc and a strong epoxy-coated cast iron body, our butterfly valves are crafted for long-term stability and reliability. The round, flanged shape enables secure installation across a variety of systems while the corrosion-resistant coating maintains appearance and function even in demanding operational conditions.


Versatility Across Media and Applications

Our valves are suitable for a wide spectrum of mediaincluding water, air, oil, and gasmaking them suitable for use in municipal, industrial, and utility applications. With EPDM or NBR seats ensuring optimal sealing, and compliance to Class VI leakage standards, users benefit from superior shutoff capability and operational safety.


Easy Operation and Maintenance

Available with either hand lever or gear operation, these valves are designed for effortless manual control. Their straightforward mechanism reduces the need for intensive maintenance, while the standardized PN10/PN16 flange end connections ensure compatibility and ease of replacement or installation in new and existing pipelines.
